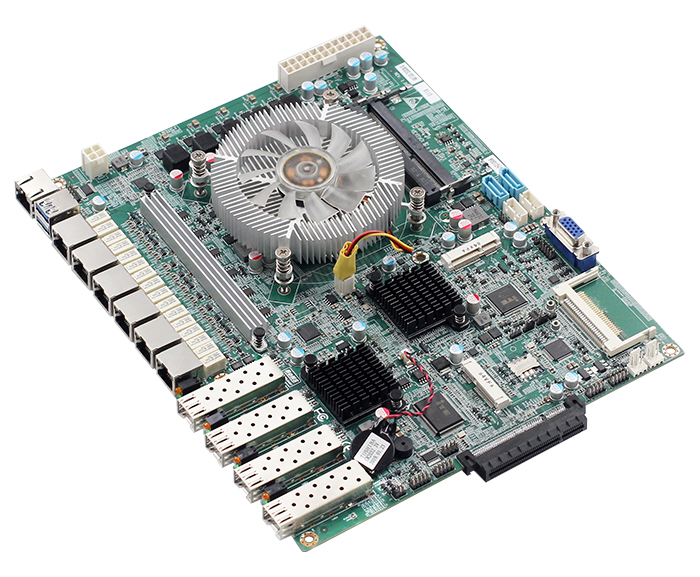

processor

CPU

Support LGA1151 socket Intel6^th and 7^th i3-i5-i7/Pentium/Celeron CPU

CPU package

LGA1151

Chip set

H110/H170/Z170High-speed chipset (other than H110, other chipsets support RAID)

Bioses

EFI Bioses

Memory

Technology Architecture

Dual channel DDR4 2133/2400MHz

socket

2 DDR4 memory slots,

Video

Graphics controller

Intel HD Graphics 610 (G4560 graphics card); graphics card model is related to the CPU

VGA

VGA supports a maximum resolution of 2048x1536

I/O backpanel

Port

1*RJ45 serial port 2*USB3.0 6*LAN 4* optical port (optional 2)

Internet

controller

6 Intel I211-AT Gigabit LAN cards (LAN1 and LAN2, LAN3 and LAN4 support two groups of Bypass functions)

4 *SFP I350  Chipset Ports

Super  I/O

Graphics controller

NCT6102D

Hardware controller

Watchdog timer

0-255 seconds, providing a watchdog routine

Input/output Port

USB

2*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5

Serial port

2 RS232 serial ports (COM1 is RJ45 interface and pin headers are selected, COM2 is pin header interface)

PS/2

1*PS/2 pin connector

Expansion wire

Mini-PCle

1 Mini-PCIe slot for PCIe and USB devices

PCIE

1 PCIE_8X interface

storage

SATA

2 standard SATAIII interfaces with a maximum transfer rate of 6Gb/s

M-SATA

1 M-SATA Scoket with SANDISK protocol, maximum transfer rate 6gb/s

CF

1*CF card slot

Power

Power type

ATX power supply

Working temperature

Operating temperature

-20℃ ~ +60℃

storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

System support

Support for Windows7 Windows10 Linux on the 6th generation CPU

Support for Windows 10 Linux on the 7th generation CPU

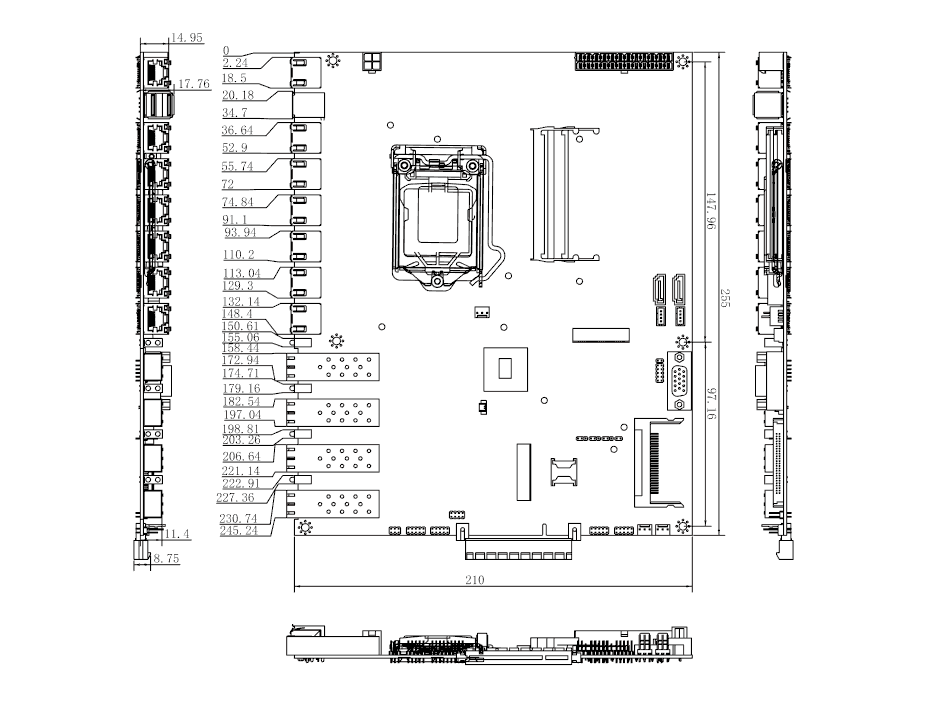

size

size

255 x 210 mm

weight

0.5KG

Certifications

CE,ROHS,FCC
