Processor system

CPU

Integrated Intel Gemini Lake single CPU

CPU package

BGA

Chipset

Intel Gemini Lake serial SOC

Bioses

EFI Bioses

Memory

Technology framework

Single channel DDR4 2133Mhz

Socket

Single SO-DIMM socket，MAX Support DDR4 8G

Video

Graphic controller

Intel UHD Graphics 600(J4005 ghraphics ）；the model of graphics is related tp the CPU type

VGA

VGA suppoprt MAX resolution: 2048x1536

HDMI

MAX resolution support（HDMI1.4）4096*2304@30HZ support 4K display

Dual display

HDMI+VGA sync or asynchronous three display

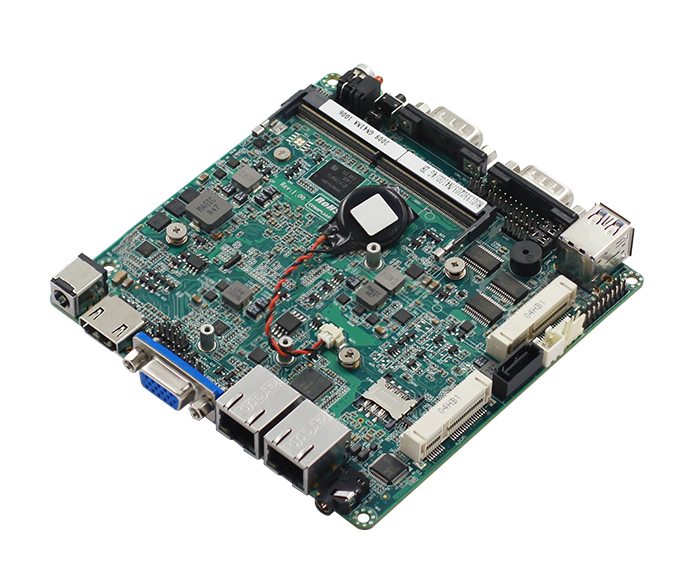

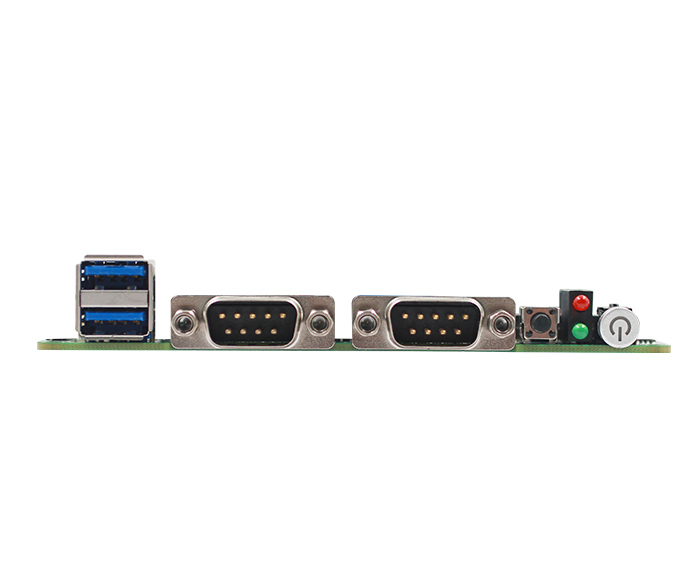

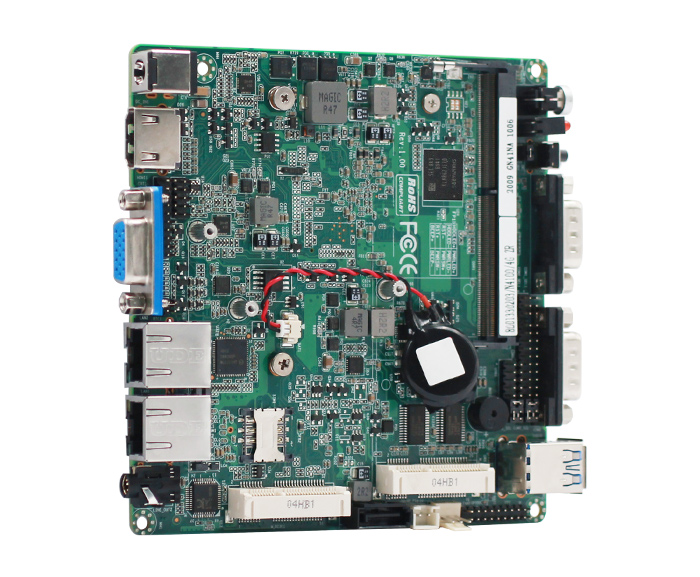

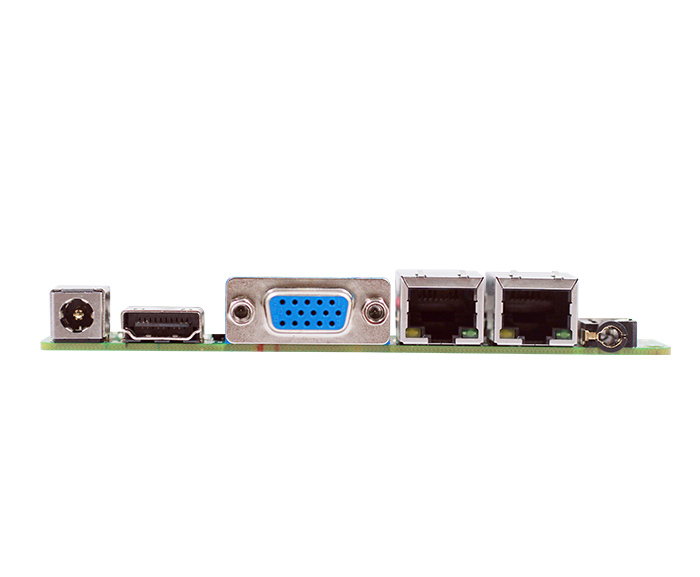

I/O rear panel

ports

1*VGA,1*HDMI,2*LAN,2*USB3.0/1*LINE-OUT,2*COM

Network

Controller

2*Intel I211AT

Audio

Controller

Raychem HD ALC662 audio decoding (left and right channel + microphones)

Controller

Controller

ITE8786E

Hardware monitoring

Watchdog timer

0-255 seconds, providing a watchdog routine

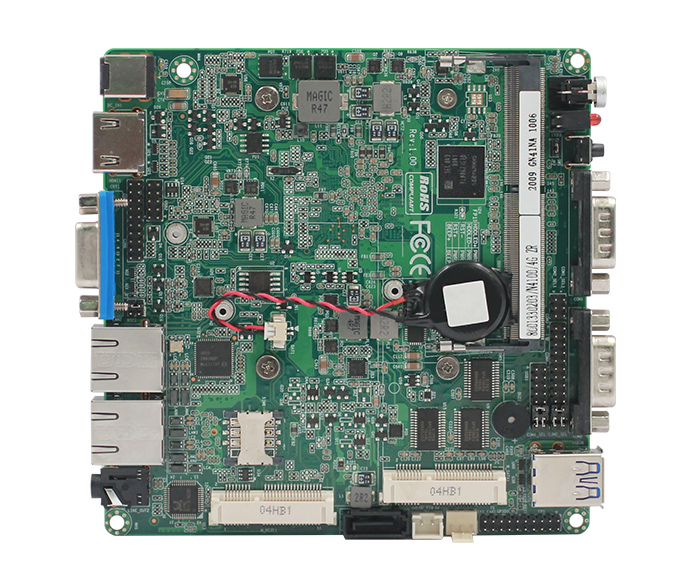

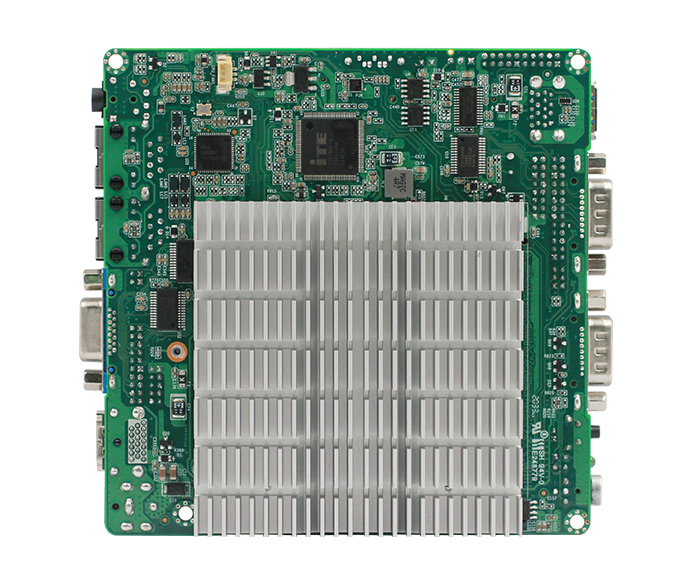

Cooler

Aluminum fan heater (supports automatic and manual fan speed adjustment)

Input/output interface

USB

2*USB3.0 compatible with USB2.0 / 1.1，4*USB2.0,MAX Support +5V/1.5A

COM

6*COM（4*RS232, 2*RS232/RS485 optional），RS485 supports automatic flow control

GPIO

8bit,sample code, Free defination input or output ,3.3V@24mA

Expansion bus

Mini-PCle

1 Mini-PCIe socket,support PCIe and USB device（5G module or PCIE module optional）

Storge

SATA

1 standard SATAIII interface with a maximum transfer rate of 6Gb/s

M-SATA

1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate of 6gb/s

EMMC

Onboard 32/64/128G EMMC storge chipset（optional

Power supply

Power Type

Single input dc power supply,DC12-19V

Working environment

Operating temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

System Support

Windows 10 Linux

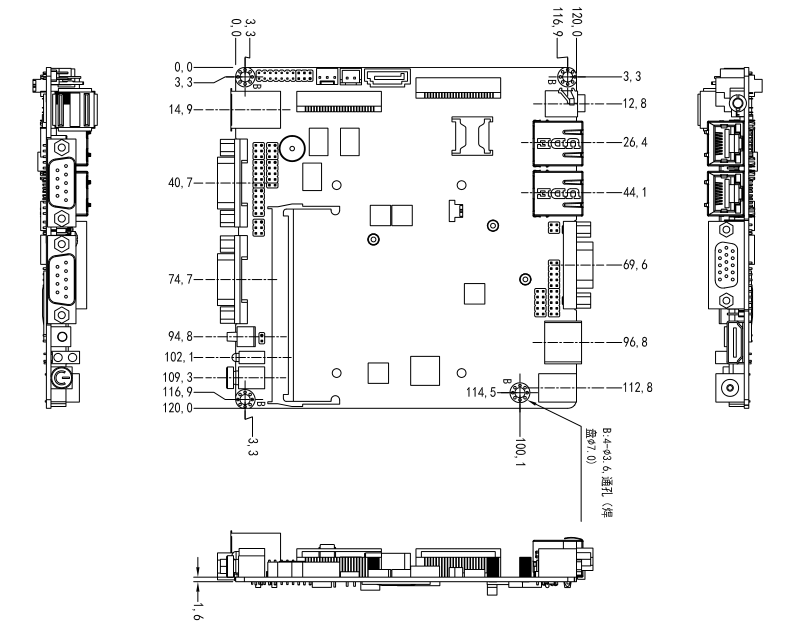

Physical dimension

Size

120 x 120mm

N.W

0.5KG

Certification

CE,RoHS,FCC

Item NO.

Spec

CPU optional

GN41NA

Integrated Intel Gemini Lake single chip CPU

J4105/J4005/N4100
